【厚建筑好文】南京国际青年文化中心 / 扎哈·哈迪德建筑事务所

点击关注厚建筑

厚建筑定时为您带来最新的优秀设计

建筑/景观/规划/室内

©Hufton + Crow

The Nanjing International Youth Culture Center is located by the riverside in Hexi New Town, the Nanjing New Central Business District (CBD). The project includes a conference center spanning 106,500 square meters, two towers with a combined floor area of 258,500 square meters, 100,000 square meters of underground space, and a plaza at the terminus of the CBD's main axis.

©Hufton + Crow

©Hufton + Crow

©Hufton + Crow

©Hufton + Crow

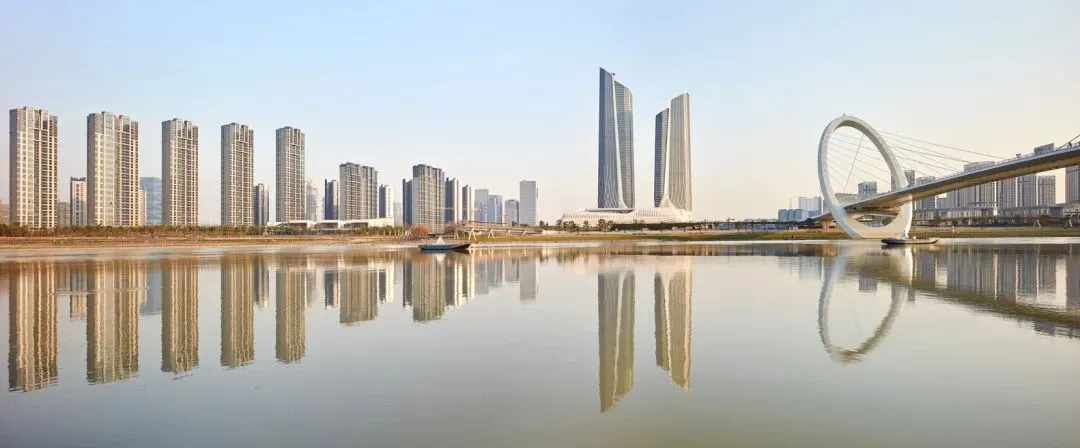

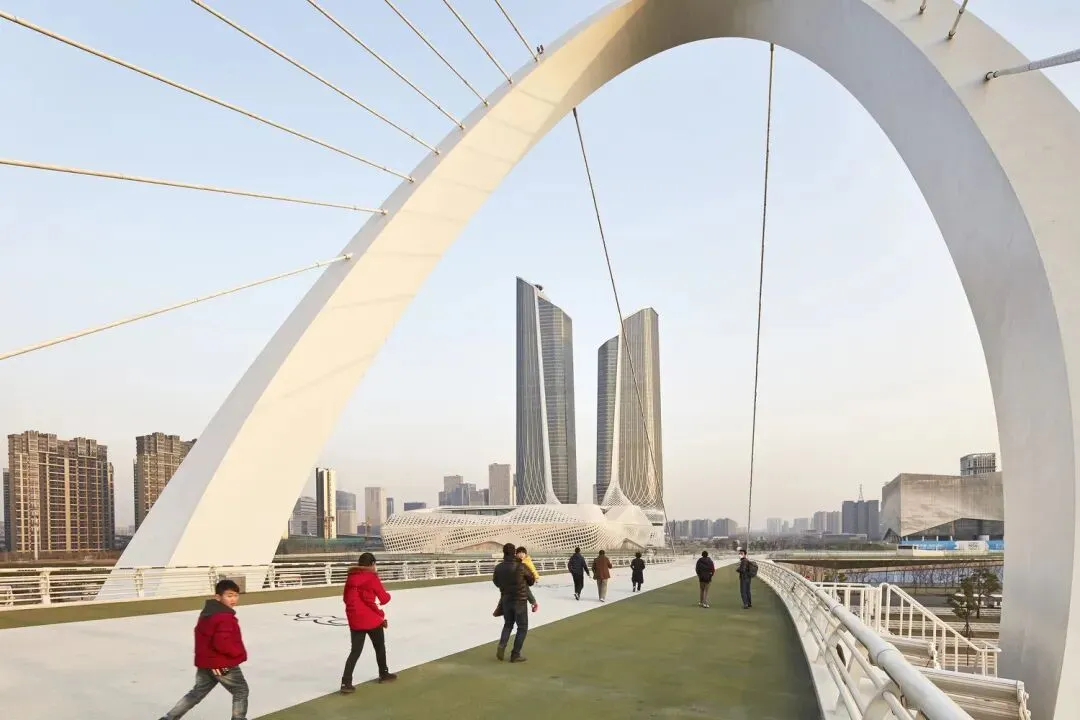

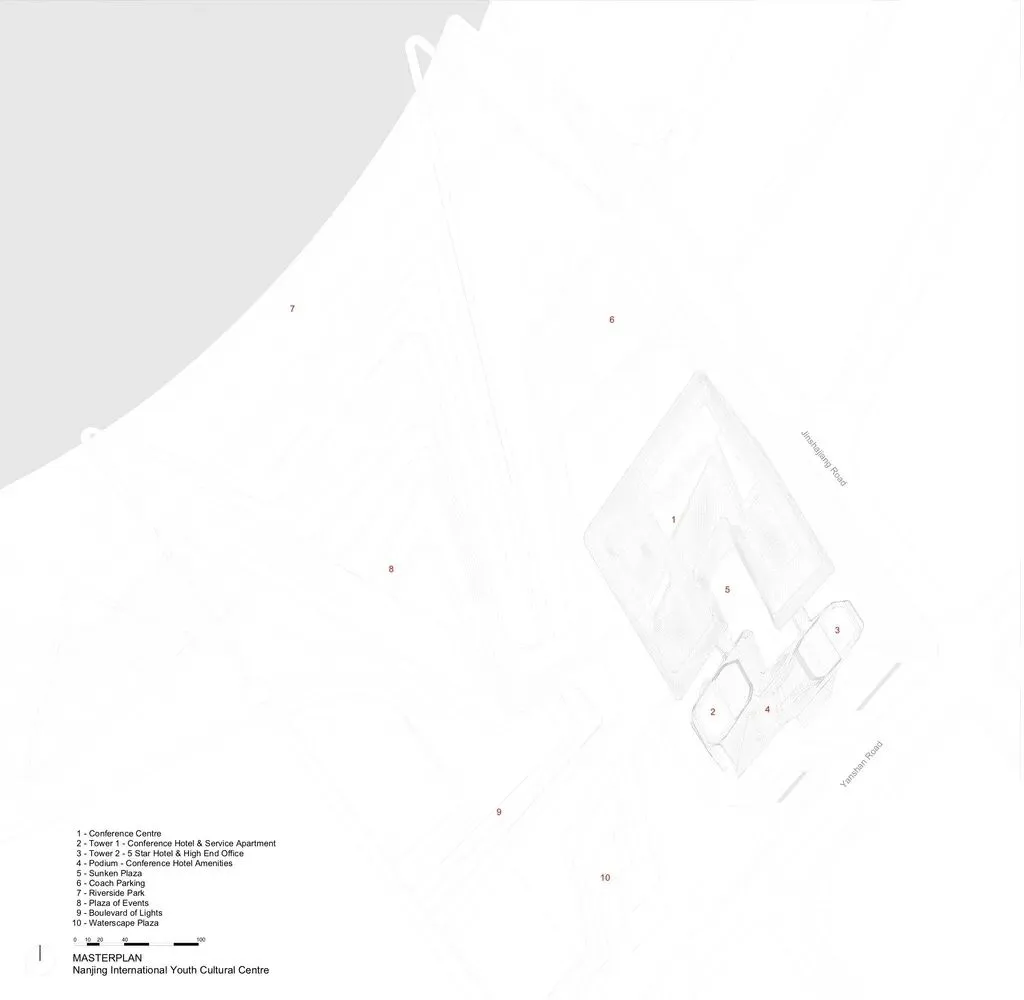

The master plan demonstrates the continuity and connectivity between the urban environment of Hexi New City, the riverside green spaces, and the rural landscape of the Jiangxinzhou Island, which is located on the Yangtze River and connected by pedestrian bridges.

©Hufton + Crow

©Hufton + Crow

©Hufton + Crow

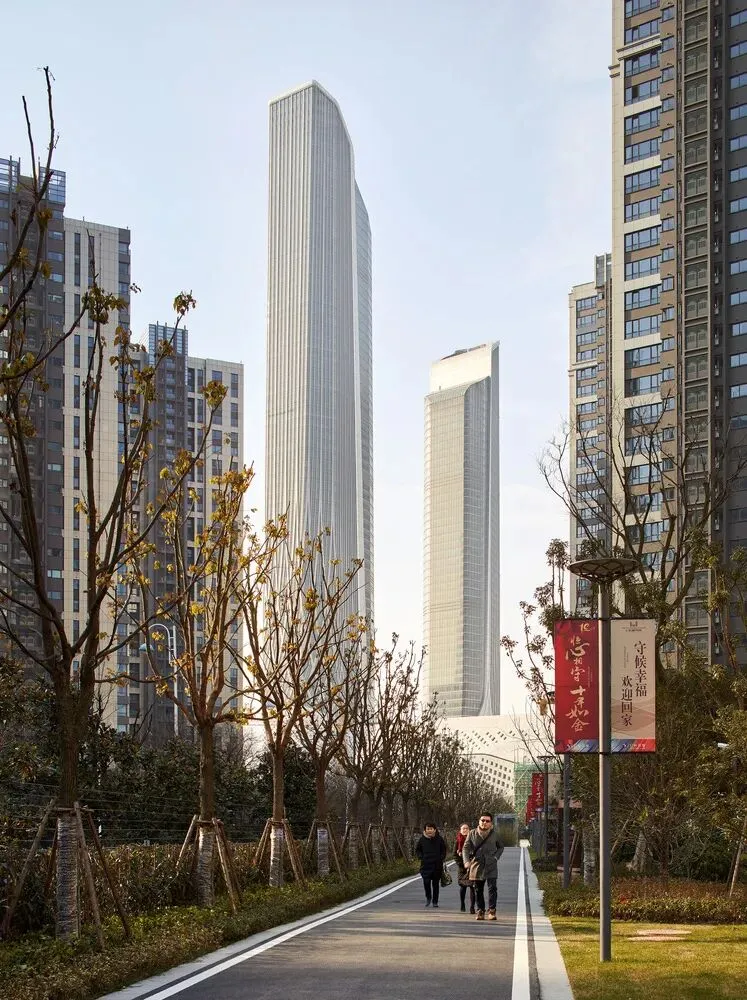

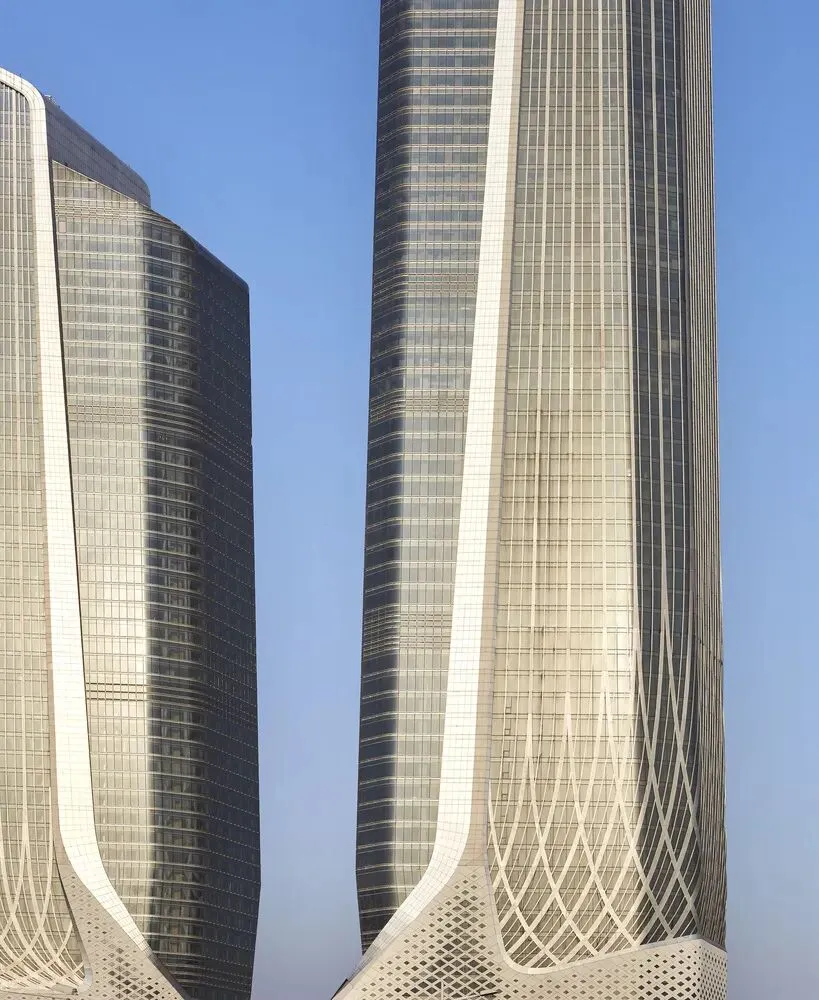

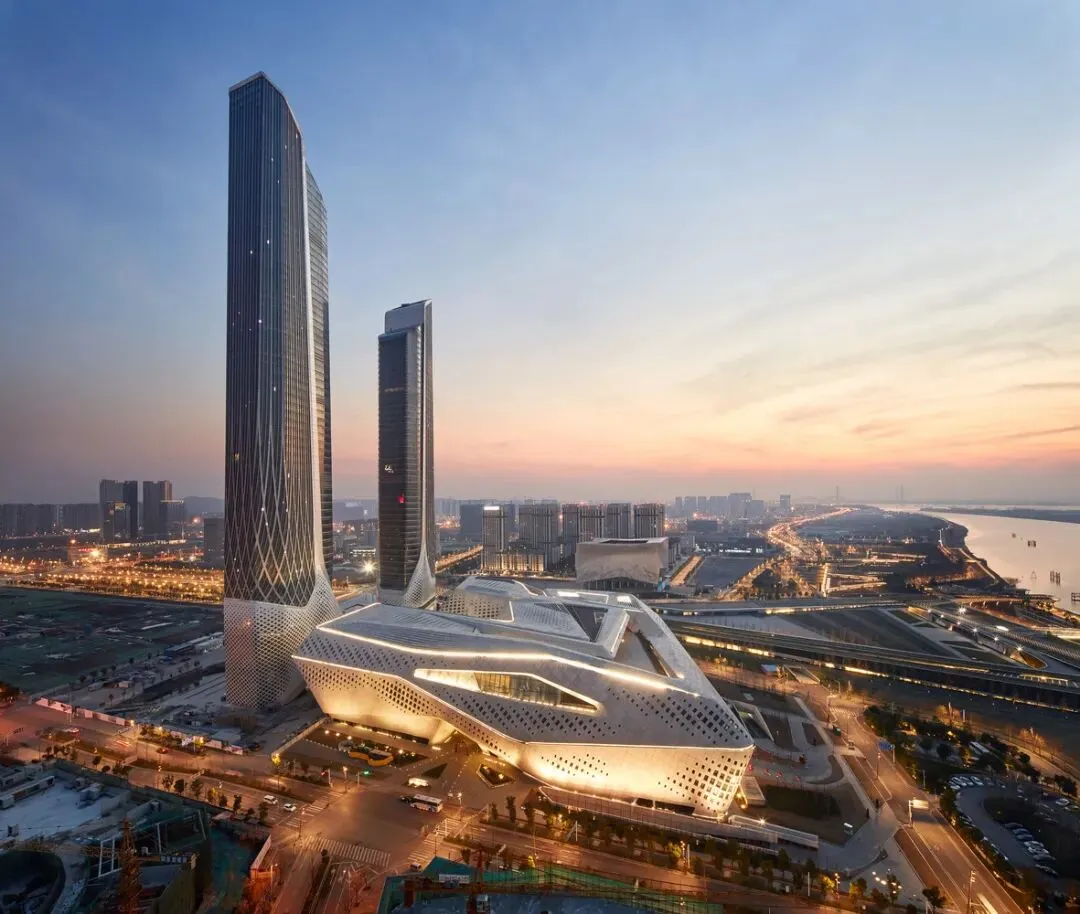

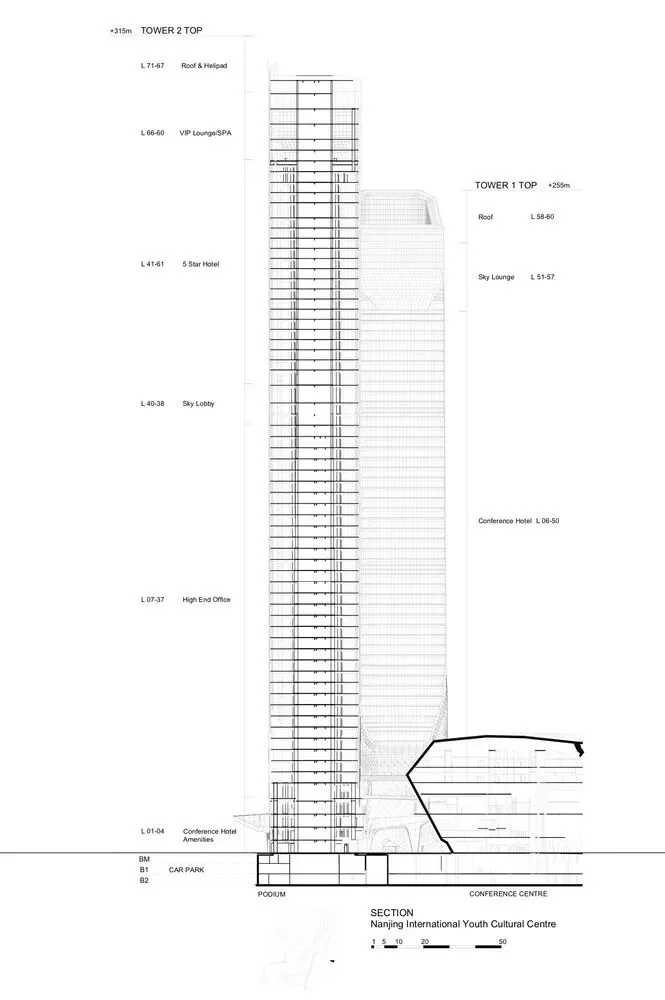

The Nanjing International Youth Culture Center covers an area of 5.2 hectares and has a total construction area of 465,000 square meters. The taller of the two towers stands at 315 meters (68 floors), housing office spaces and a Jumeirah Hotel. The shorter tower is 255 meters (59 floors) tall and includes another four-star hotel. Both towers share a five-story multifunctional podium that accommodates the cultural center.

©Hufton + Crow

©Hufton + Crow

©Hufton + Crow

©Hufton + Crow

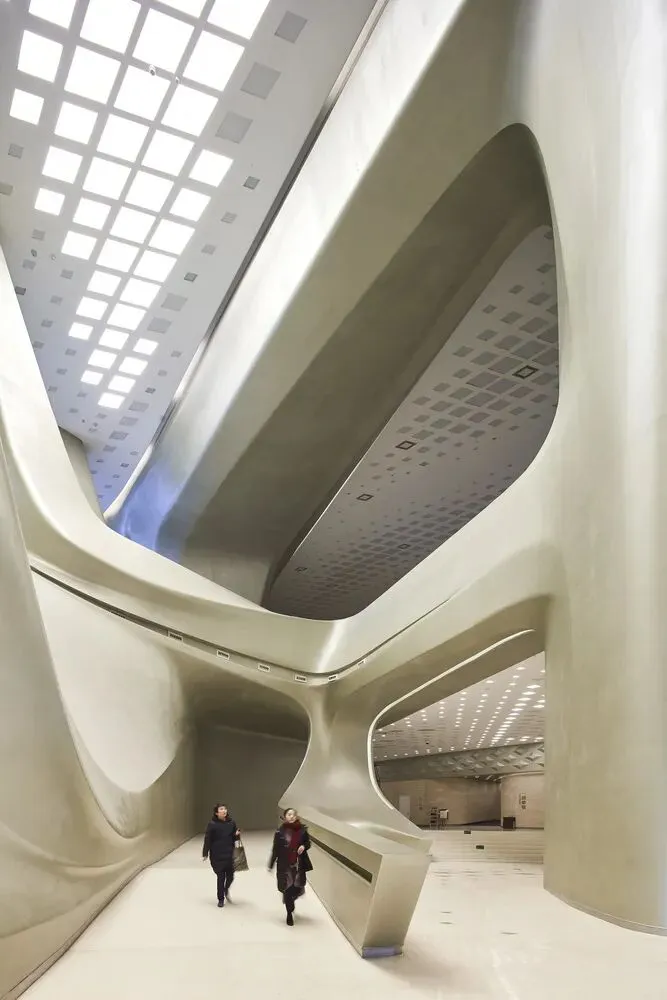

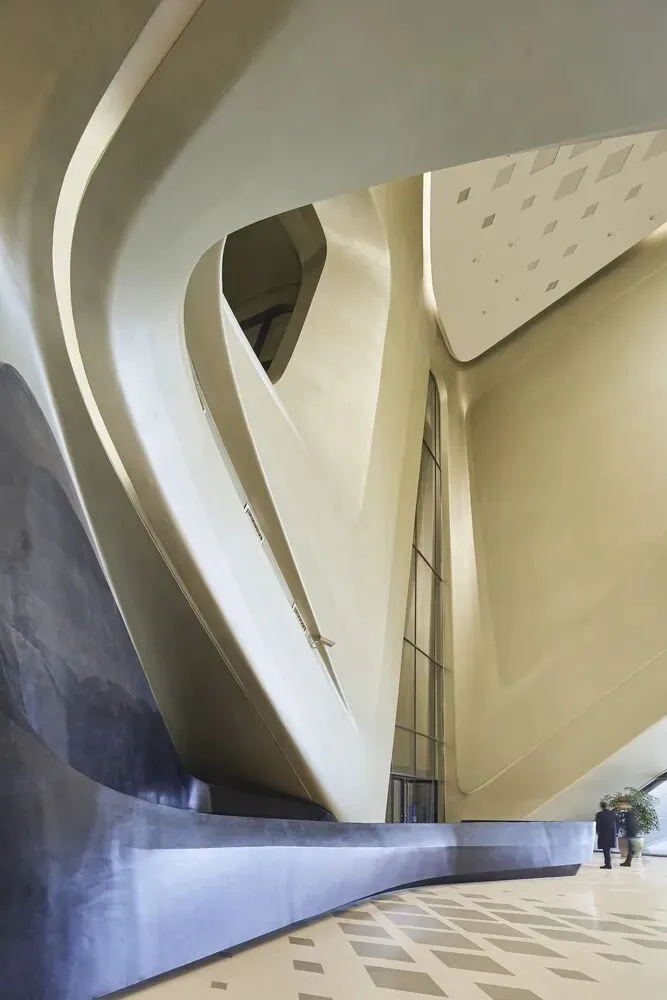

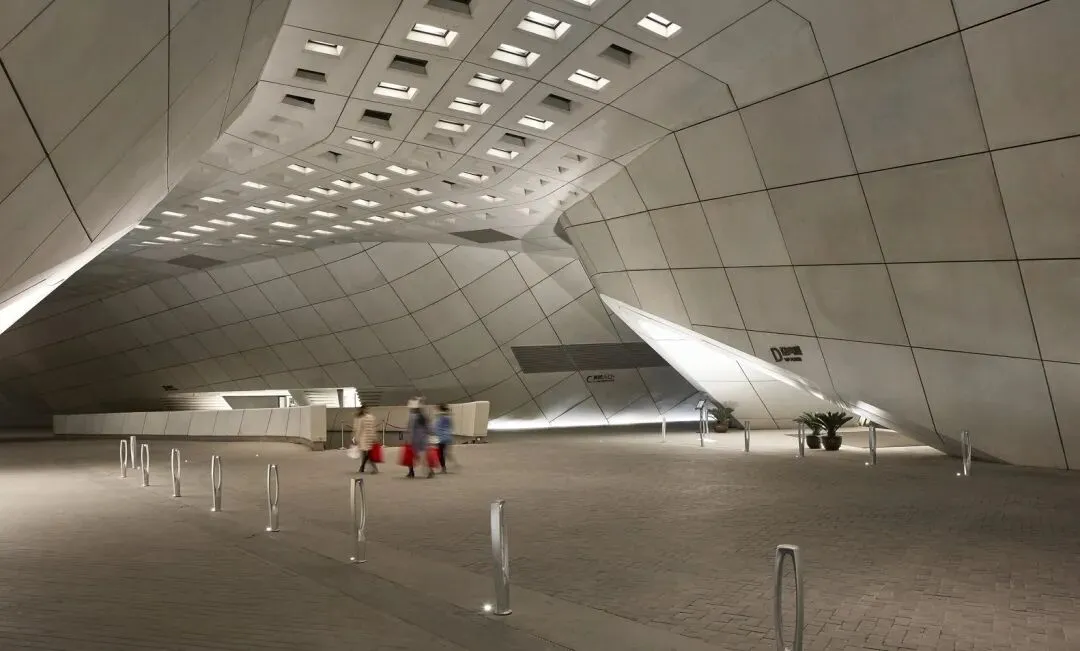

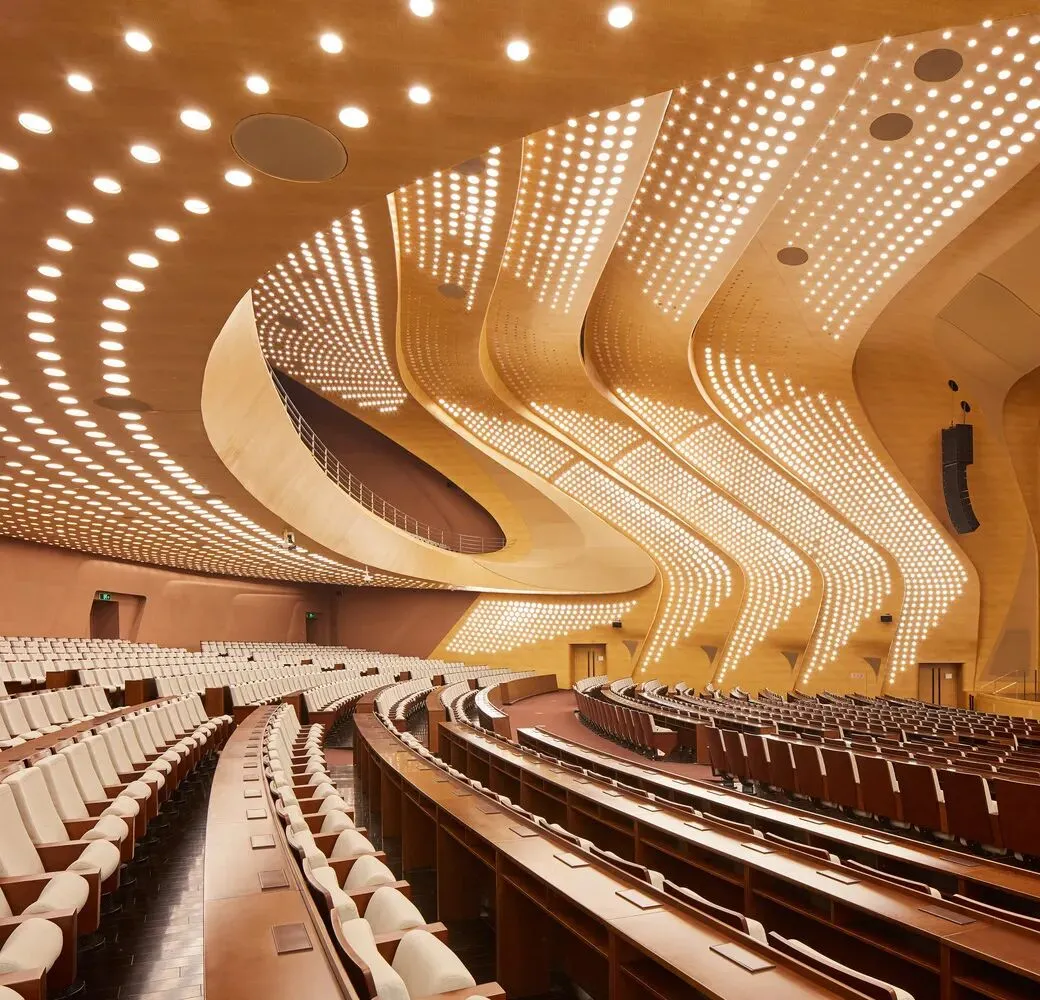

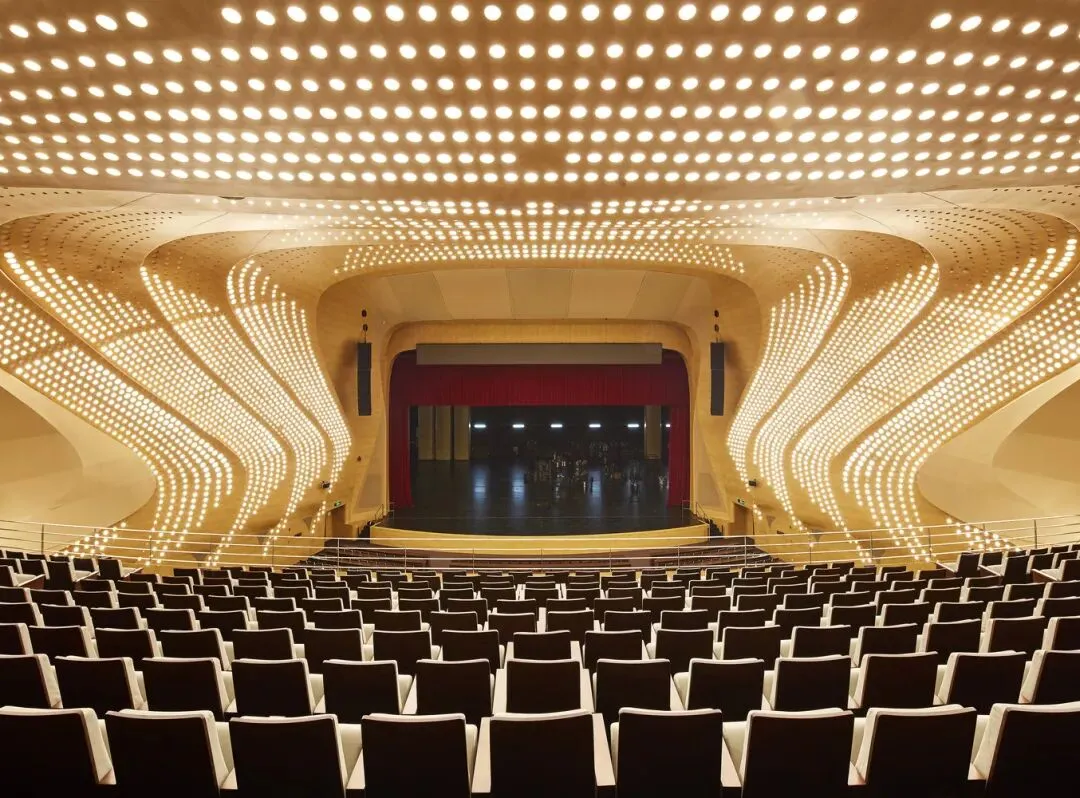

The four main projects of the cultural center - conference hall, auditorium, multifunctional hall, and reception area - are independent volumes centered around the central courtyard. The four elements merge into a whole on the upper level, and pedestrians can pass through an open landscape on the ground. The conference hall can accommodate 2100 people and is equipped with a multifunctional stage suitable for meetings, cultural and theatrical activities. The auditorium can accommodate 500 people and can be used for orchestral performances, as well as audio equipment for performances.

©Hufton + Crow

©Hufton + Crow

©Hufton + Crow

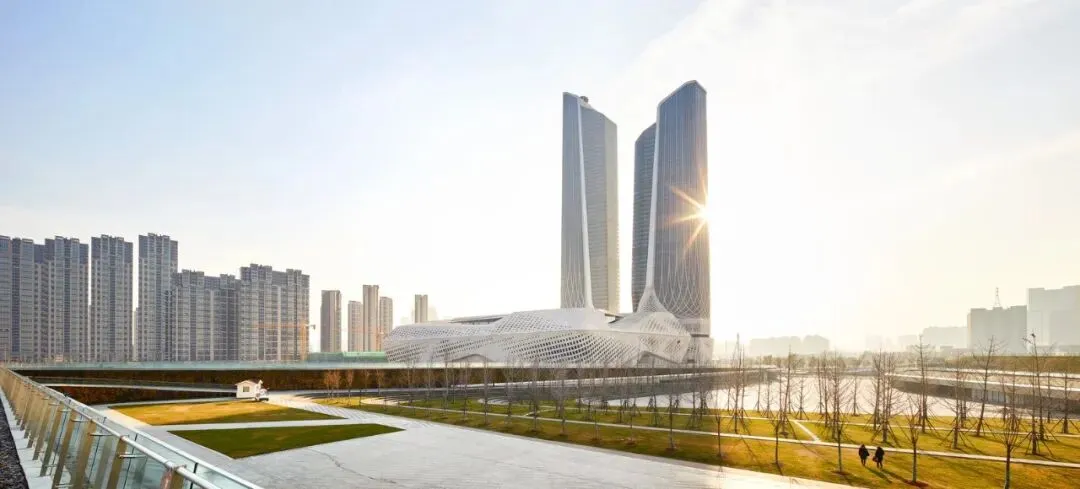

塔楼创造了从城市垂直的CBD到河流水平地形的动态过渡。较高的塔楼象征着广场在河西新城城市网格和南京天际线上的位置。河流的自然景观通过多功能裙房和会议中心流畅的建筑语言与新CBD的城市街道景观相连接。这种建筑结构将垂直的(城市)和水平的(河流和景观)并列在一起。

The tower creates a dynamic transition from the vertical CBD of the city to the horizontal terrain of the river. The higher tower symbolizes the position of the square in the urban grid of Hexi New City and the Nanjing skyline. The natural landscape of the river is connected to the urban street landscape of the new CBD through the smooth architectural language of the multifunctional podium and conference center. This architectural structure juxtaposes the vertical (city) and horizontal (river and landscape) together.

©Hufton + Crow

©Hufton + Crow

©Hufton + Crow

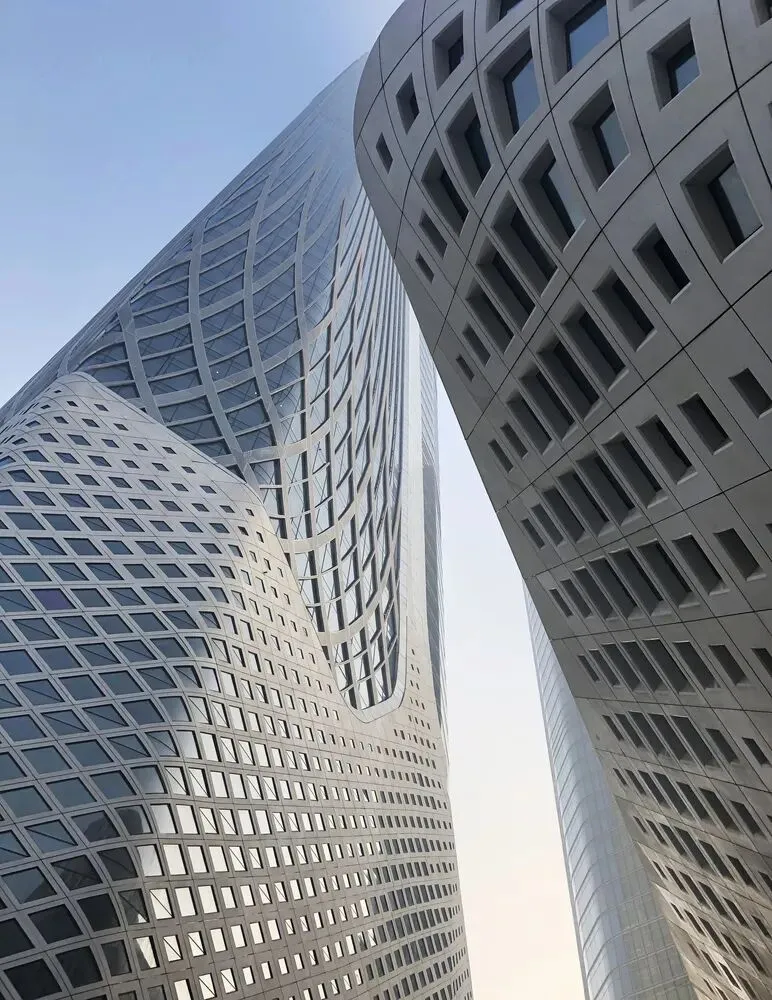

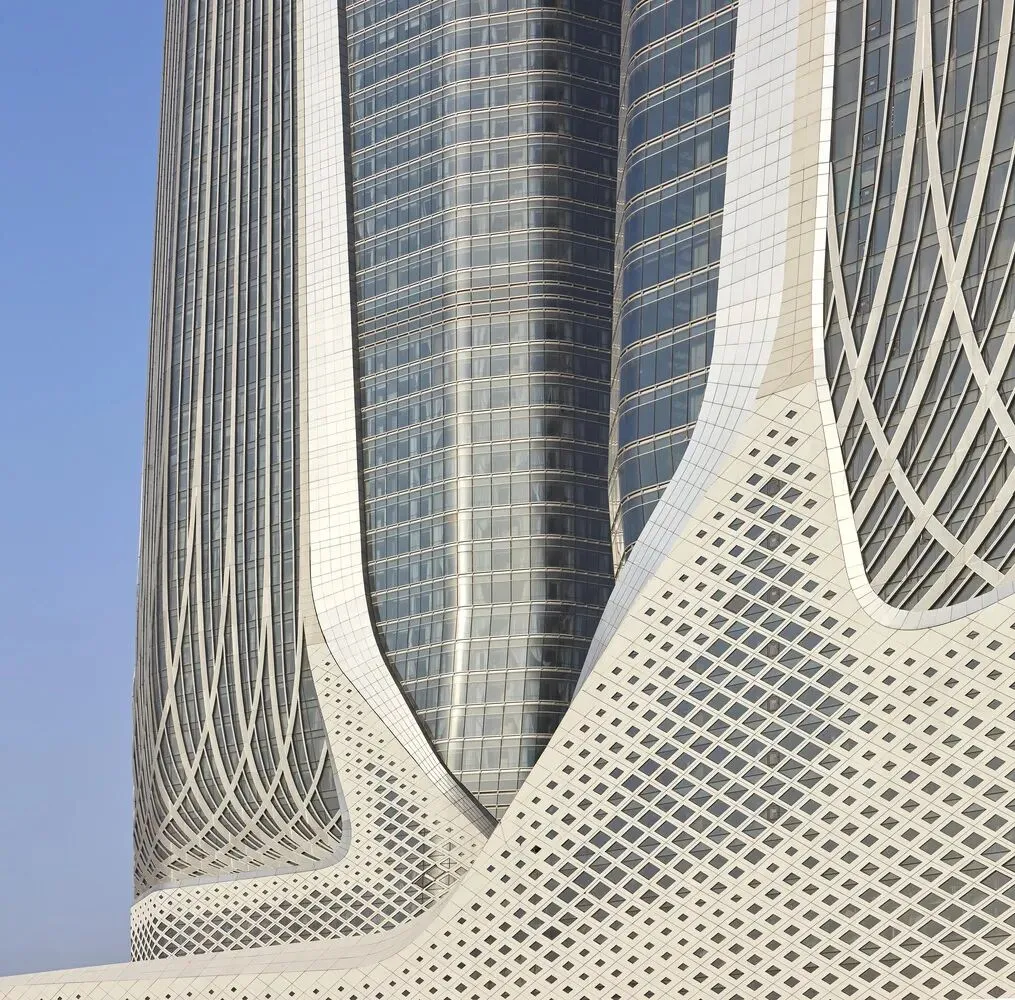

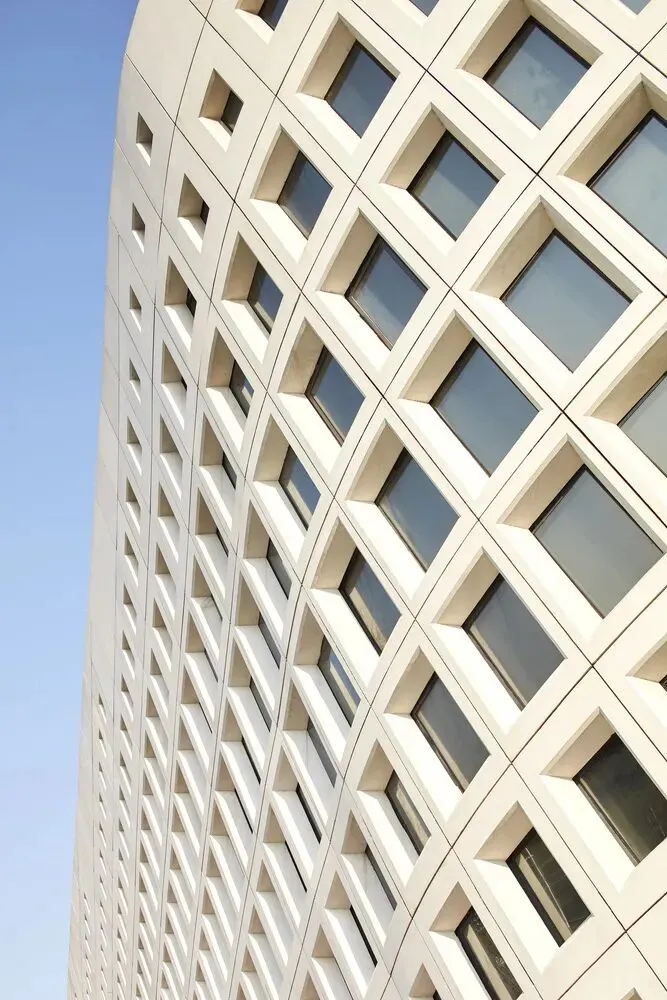

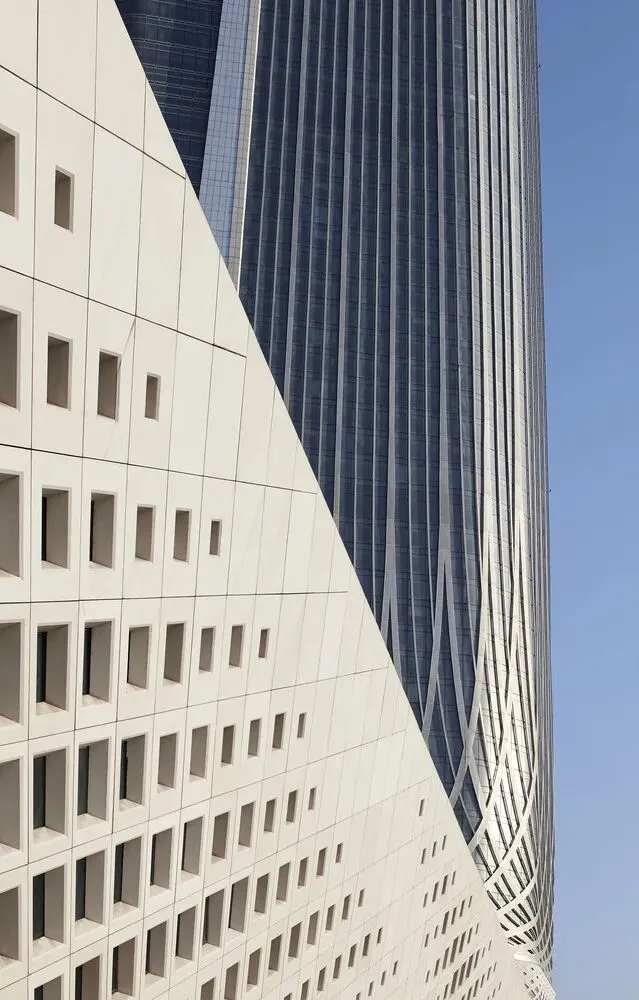

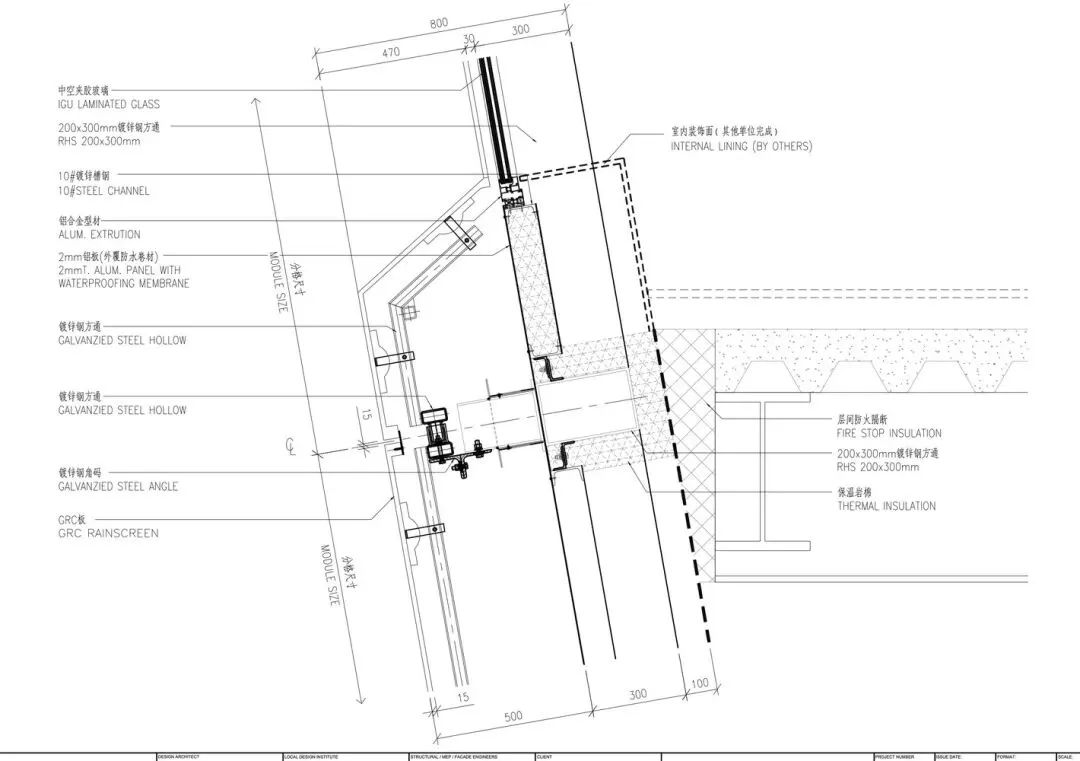

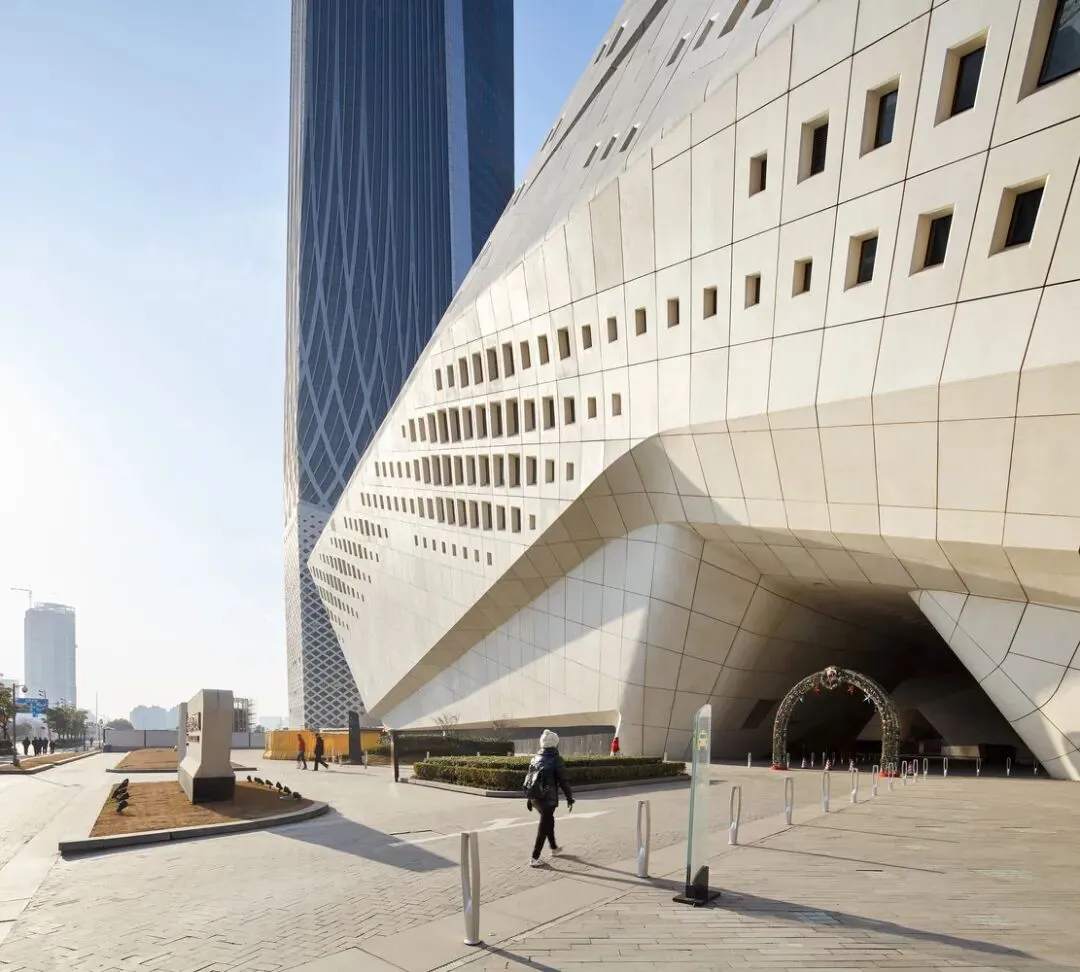

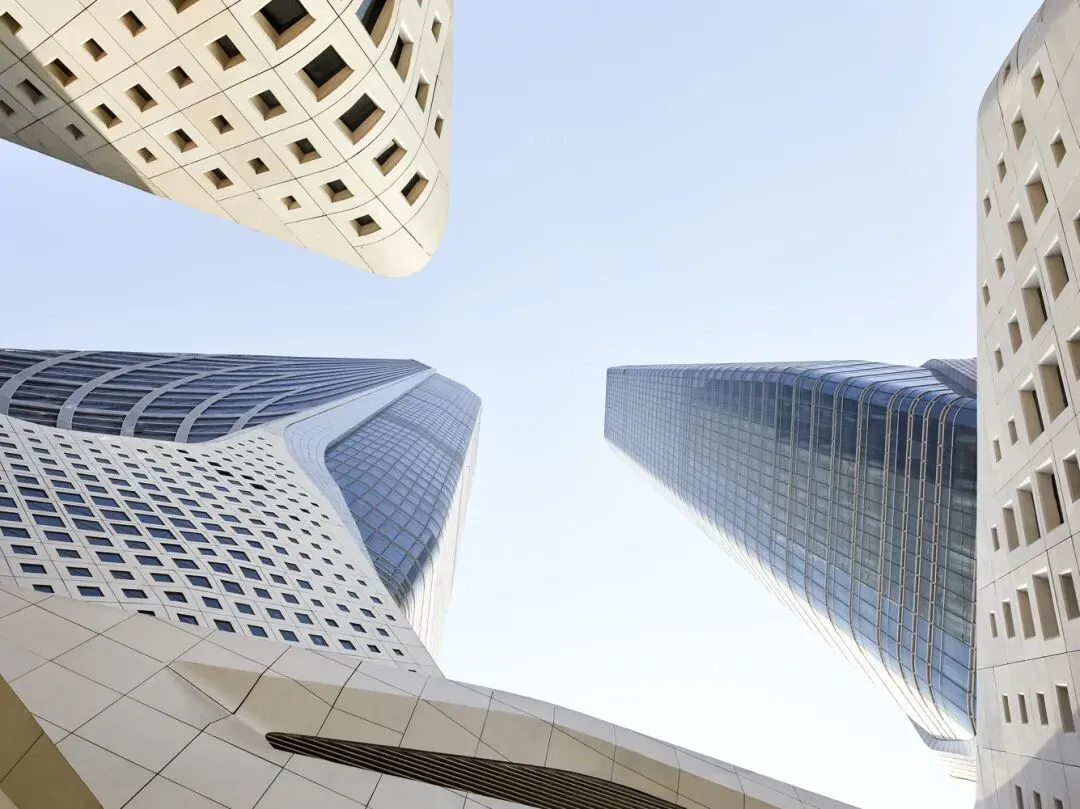

At the junction between the tower and the building, the glass curtain wall gradually transforms into a diamond shaped fiber reinforced concrete panel grid, and the large surfaces of the podium and conference center present a solid and sculptural appearance; Emphasizing the dynamic characteristics of form while providing sunlight for the interior of the building.

©Hufton + Crow

©Hufton + Crow

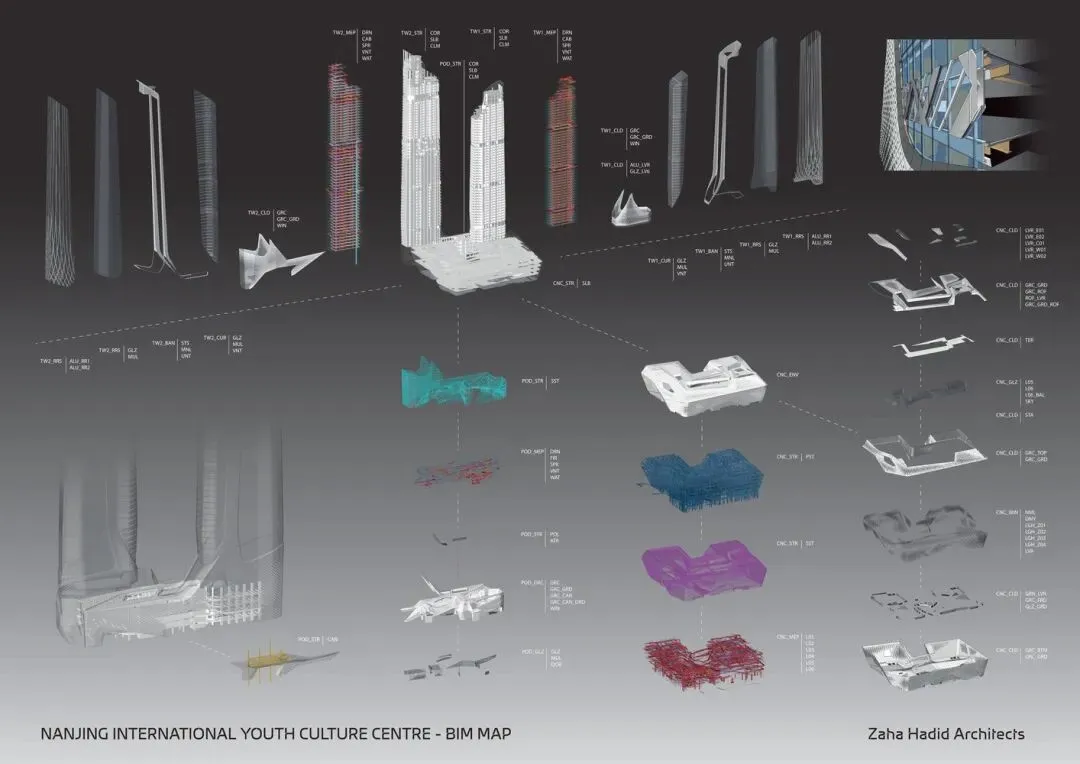

This project is the first in China to start from the street level and build both upwards and downwards simultaneously. Utilizing ZHA's professional knowledge and experience in 3D digital BIM (Building Information Modeling) design and construction management, the entire project cycle has been shortened to 34 months, with on-site construction taking only 18 months.

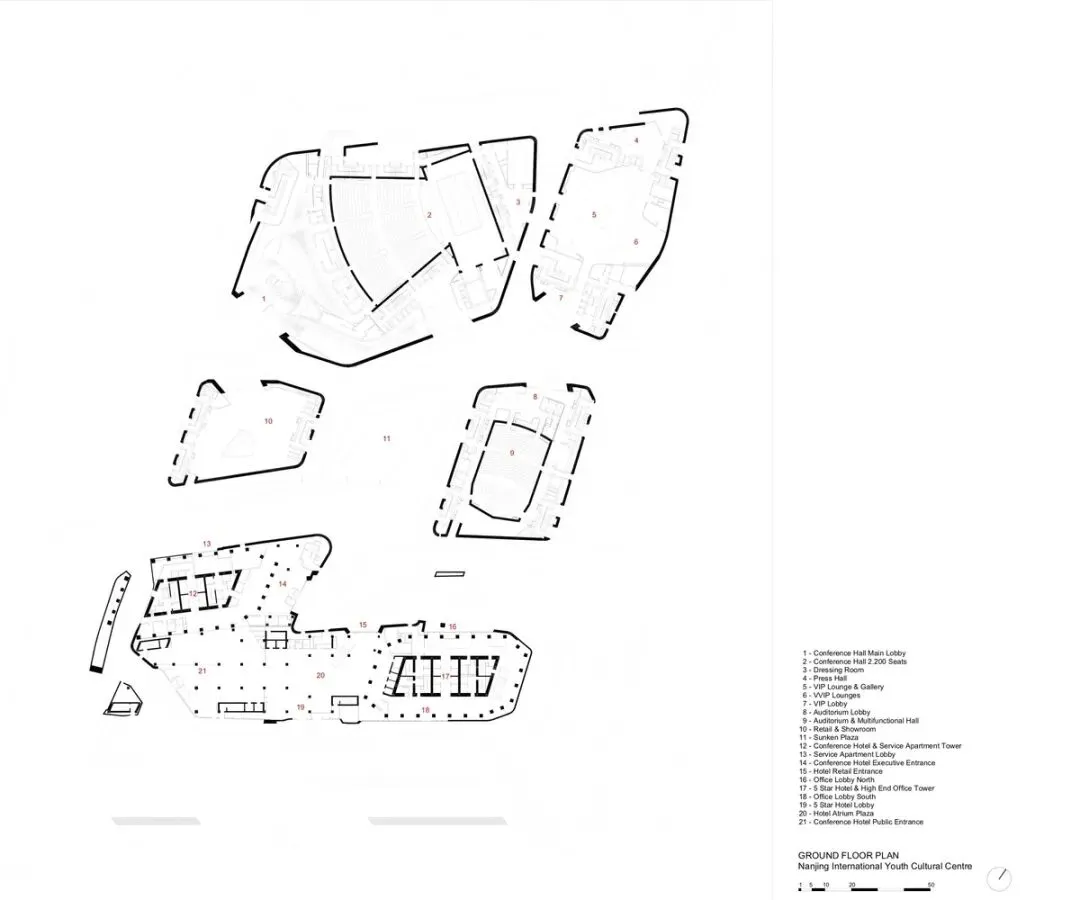

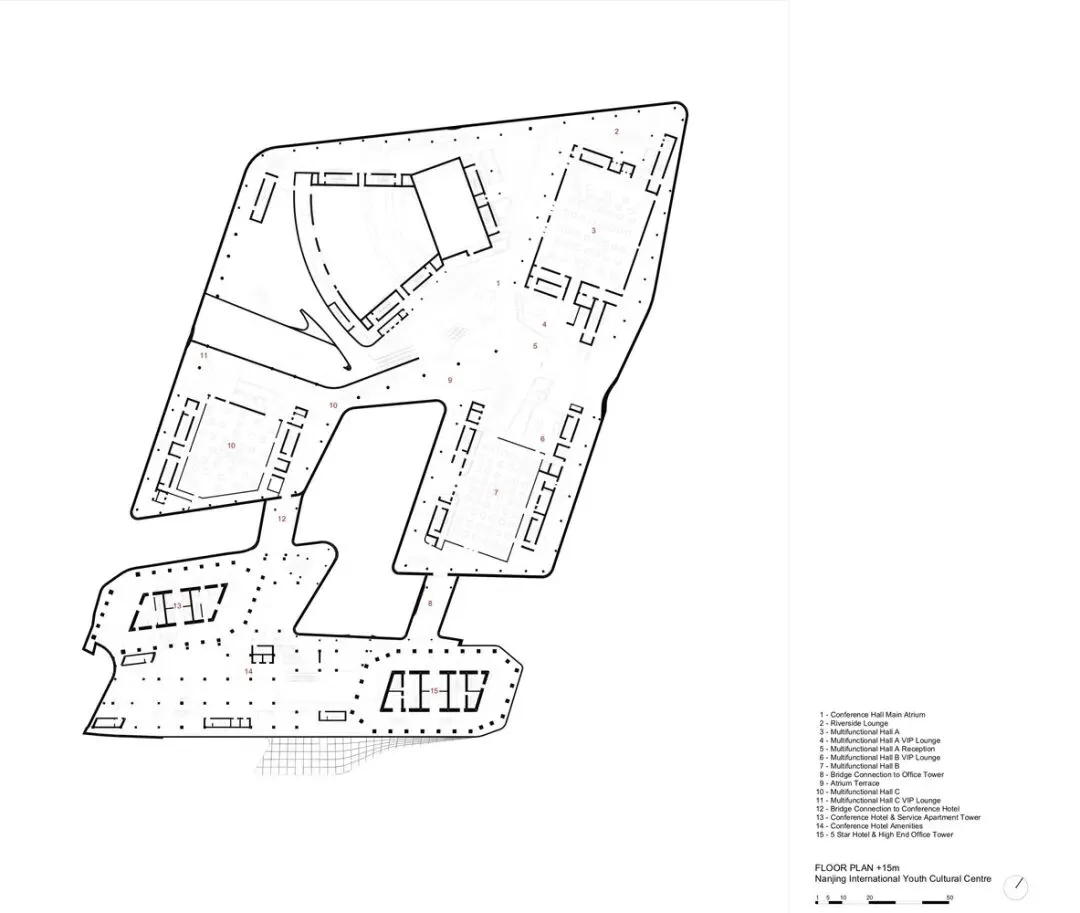

©平面图

©模型

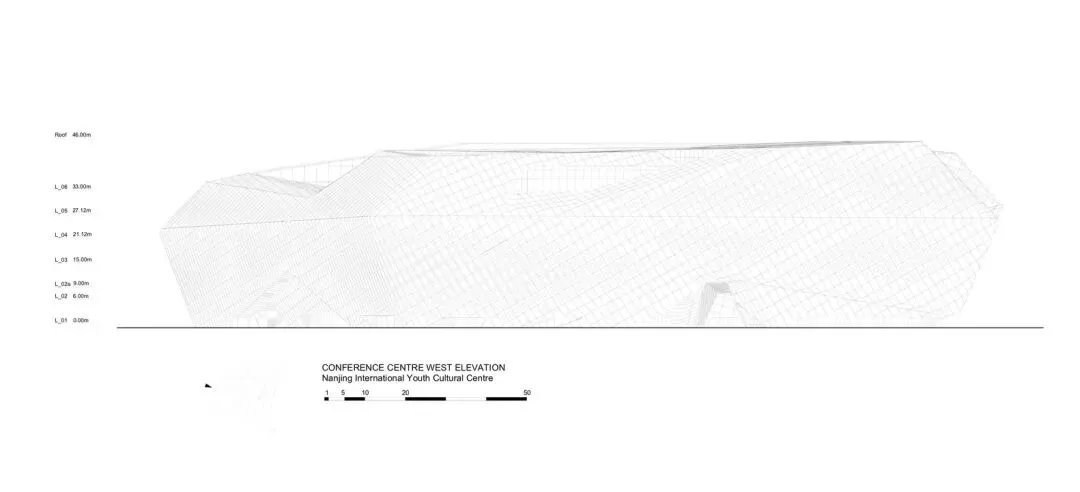

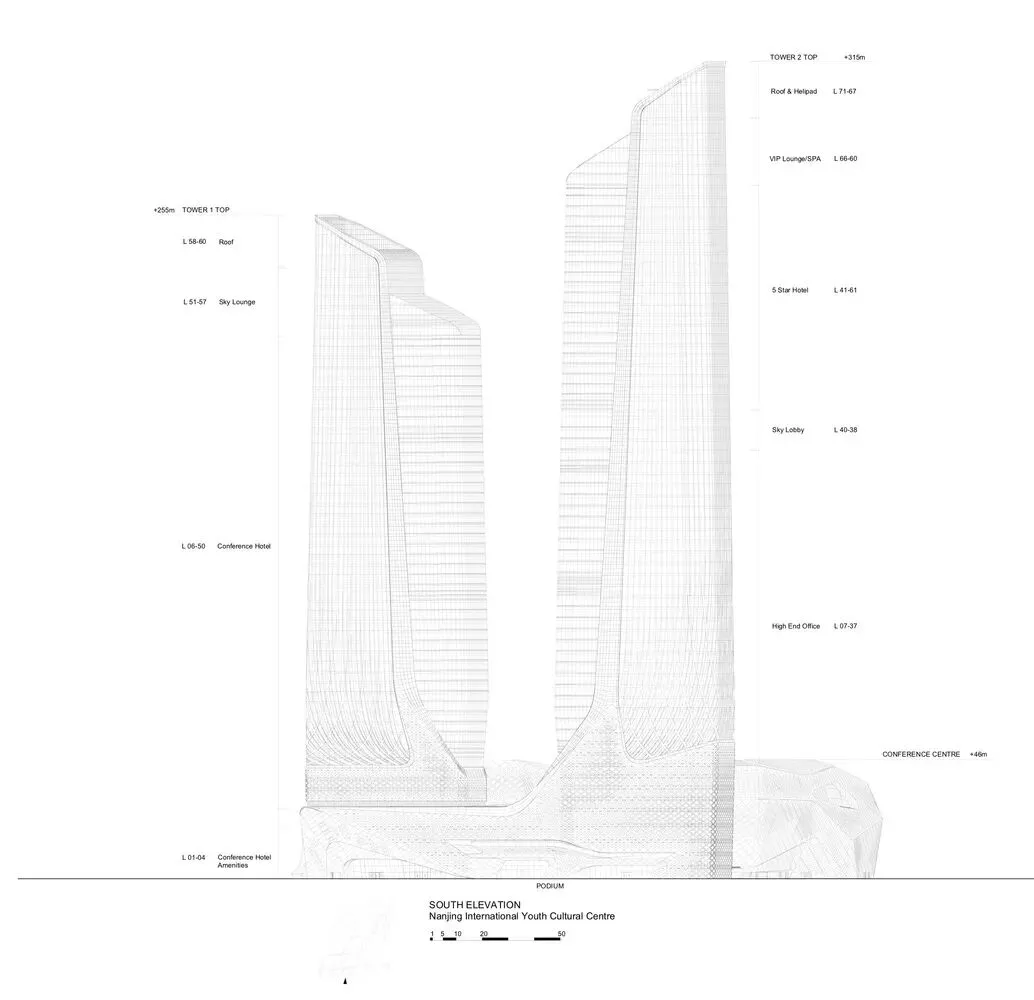

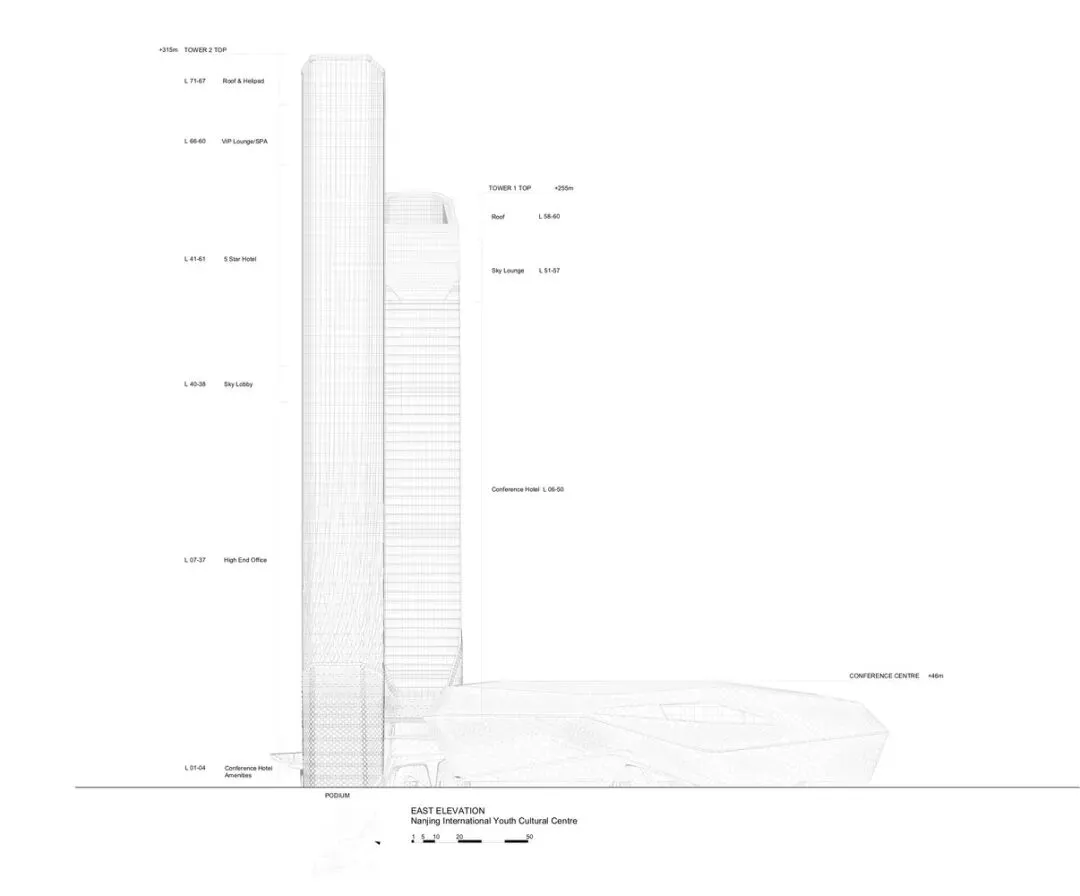

©立面图

©立面图

©立面图

©立面图

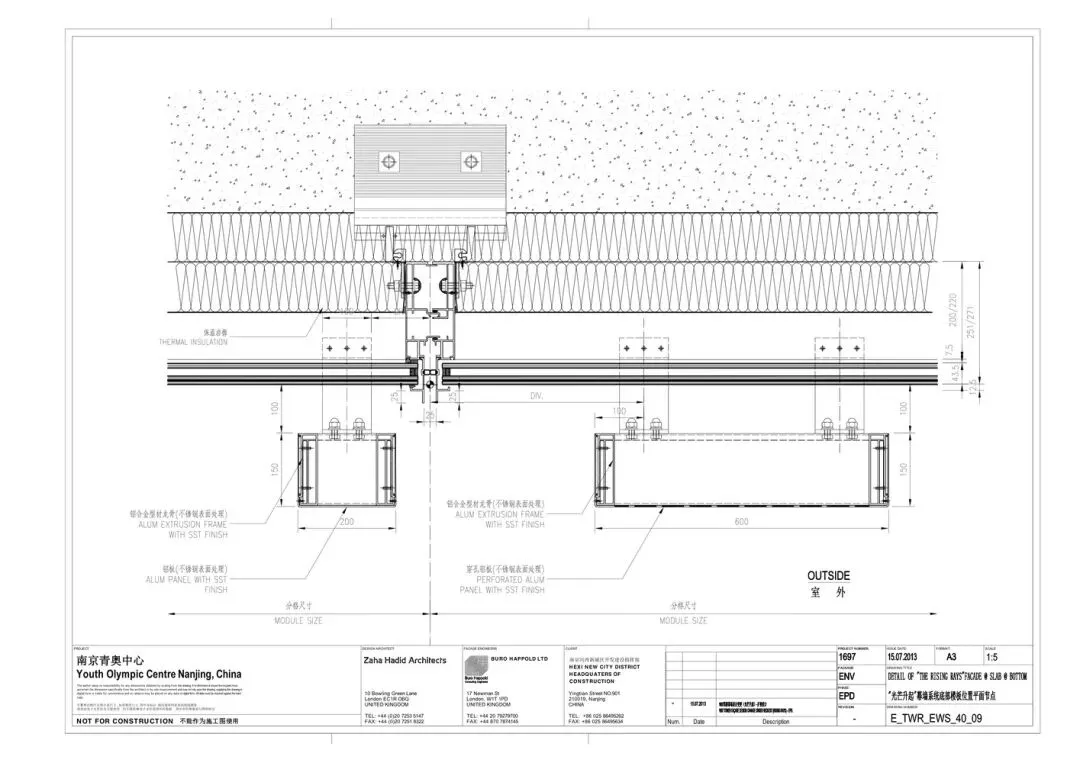

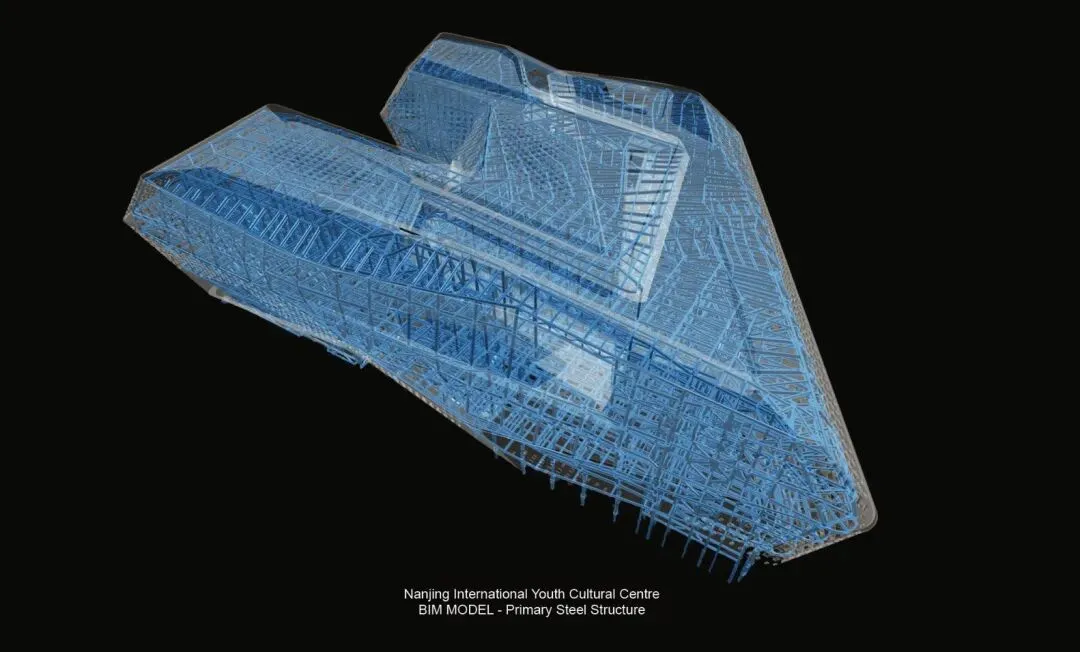

©结构图

©结构图

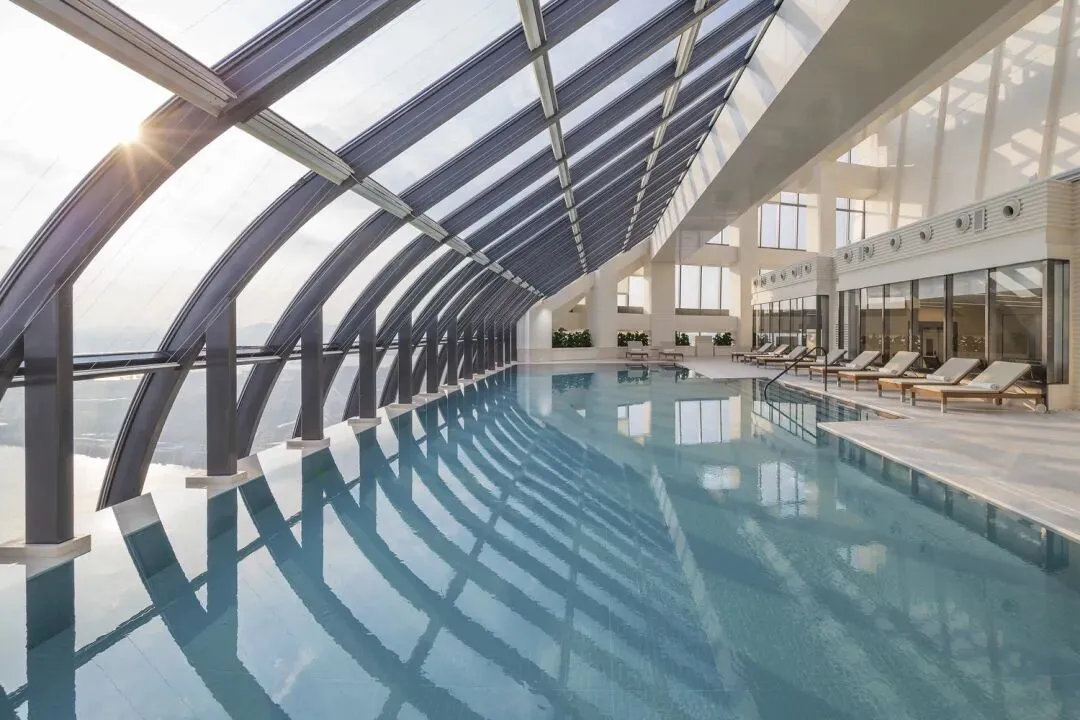

The Nanjing International Youth Cultural Center, covering an area of 465000 square meters, was first opened for the 2014 Youth Olympic Games. The Nanjing Jumeirah Hotel now occupies the tallest tower in the center. As one of the world's leading luxury hotel brands, Jumeirah Hotels recently built their Nanjing hotel, becoming the most important hotel destination in the city.

建筑师: 扎哈·哈迪德建筑事务所; 扎哈·哈迪德建筑事务所

面积: 465000 m²

项目年份: 2018

Lei Bie: 文化中心

ZHA 咨询合作: Cristiano Ceccato

ZHA 项目建筑师: Shao-Wei Huang

ZHA 立面和表皮: Shao-wei Huang, Lydia Kim

ZHA 会议中心: Melike Altinisik

ZHA 塔楼和平台: Garin O’Aivazian

ZHA 室内设计: May-Jinqui Qin

ZHA 景观和城市设计: Carolina Lopez-Blanco

ZHA 工地监理: Ed Gaskin

ZHA 竞赛团队: Garin O’Aivazian, Jalal El-Ali, Kyla Farrell, Maria Tsironi, Matthew Richardson, Melike Altinisik, Meng Chan Tang, Mirco Becker, Mostafa El Sayed, Paolo Gamba, Saman Saffarian, Shajay Bhooshan, Shao- wei Huang, Shyamala Duraisingam, Spyridon Kaprinis, Suryansh Chandra, Yevgeniya Pozigun

ZHA 项目团队: Alexandros Kallegias, Ashwin Shah, Carlos Michel-Medina, Carlos Piles Puig, Chao Wei, Charbel Chagoury, Christy Yin, David Doody, Duarte Reino, Elena Scripelliti, Emma Chen, Ermis Chalvatzis, Eugene Leung, Frenji Koshy, George Frenji, Ho-Ping Hsia, Hongdi Li, Igor Pantic, Jamie Mann, John Randle, Julia McLeod, Katharina Hieger, Konstantinos Mouratidis, Leonid Krykhtin, Leo Wu, Mattia Gambardella, Michael Grau, Michael Sims, Mostafa El Sayed, Mu Ren, Nassim Eshaghi, Natassa Lianou, Nicholette Chan, Niqui Berkowski, Patryk Ruszkowski, Sebastian Andia, Shajay Bhooshan, Soomeen Hahm, Spyridon Kaprinis, Vincent Nowak, Yuchen Zhang, Yue Shi, Yun Zhang

ZHA 工地监理团队: Juan Liu, David Chen, Liyuan Zhang, Vincenzo Cocomero, Xi Wang, Xin Ji, Yan Geng

建筑记录: China Architecture Design and Research Group

结构工程师: BuroHappold Engineering, China Architecture Design and Research Group

设备工程师: BuroHappold Engineering, China Architecture Design and Research Group

垂直交通顾问: Dunbar and Boardman

立面工程师: BuroHappold Engineering

景观建筑师: SWA Group

灯光顾问: Brandston Partnership Ltd

声学顾问: Zhejiang University, China

剧院顾问: China Art and Technology Institute

总承包商: China State Construction Engineering Corporation Division 8, China State Construction Engineering Corporation Division 3

设计: Zaha Hadid, Patrik Schumacher

ZHA 项目负责人: Nils-Peter Fischer

城市: Nanjing
